1．Product Introduction

I、the product description

This product is a laboratory research-grade fuel cell single cell test fixture of the American standard, which can be used for standardized testing and performance evaluation of hydrogen-oxygen fuel cells and hydrogen-air fuel cells. The standard product has three types of electrode areas: 5 cm², 25 cm² and 50 cm², and adopts aluminum alloy end plate, copper gold-plated manifold, and graphite runner plate. The 5 cm² flow field is a serpentine single channel, the 25 cm² flow field is a serpentine three channel design and the 1250px2 flow field is parallel serpentine four channel design. Provides flat, uniform compression over the entire surface of the MEA tested. Options include test thermocouples, current cables, and electric heating belts. The air path conversion interface of the product is an imperial standard (can be customized as needed), matching the 850e workstation of Fuel Cell Technology in the United States, Taiwan Qunyi/Scribner in the United States, and other brand workstations please consult and confirm. The use of this product can obtain test results that are completely consistent with the introduction of the single cell test fixture imported from the United States.

Key Features:

● Electrode Areas: Standard configurations available in 5 cm², 25 cm² and 50 cm²

● Construction: Equipped with durable aluminum alloy end plates, copper-gold plated flow fields, and high-performance graphite flow field plates.

● Flow Field Design:

√ 5 cm²: Single-channel serpentine flow field

√ 25 cm²: Triple-channel serpentine flow field.

√ 50 cm²: Parallel serpentine four channels

● Compression Uniformity: Ensures consistent and uniform compression across the membrane electrode assembly (MEA) during testing.

● Optional Accessories:

√ Temperature measurement thermocouples.

√ Current cables.

√ Electric heating rods.

● Gas Path Interface: Standardized to English specifications, with customization available upon request.

● Compatibility: Designed for seamless integration with American Fuel Cell Technology systems and workstations, including the Taiwan Qunyi and Scribner 850e systems. Compatibility with other brands can be confirmed upon inquiry.

This fixture delivers consistent and reproducible test results, comparable to those obtained using imported single-cell test fixtures from the United States.

2. Product Parameters

Operating temperature: ≤200℃

Cable: national standard cable

Thermocouple: high-precision T-type thermocouple

End plate material: aluminum alloy

Collector plate material: gold-plated copper

Flow channel plate material: high-conductivity graphite

Flow channel: serpentine flow channel (5 cm2 for a single flow channel, 25 cm2 for triple-channel flow channels)

Compatible with Taiwan Wealth Year/American Scribner Company 850e workstation (customizable according to demand)

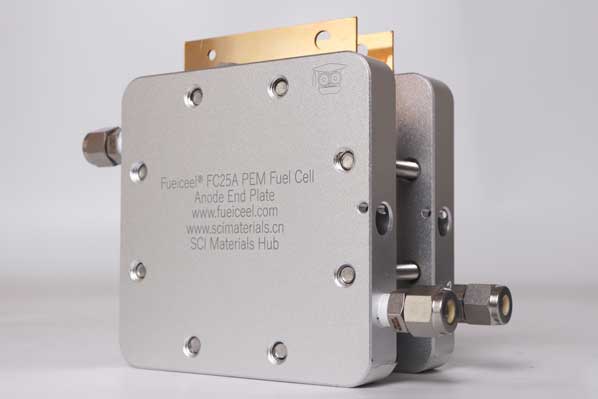

▲Product diagram

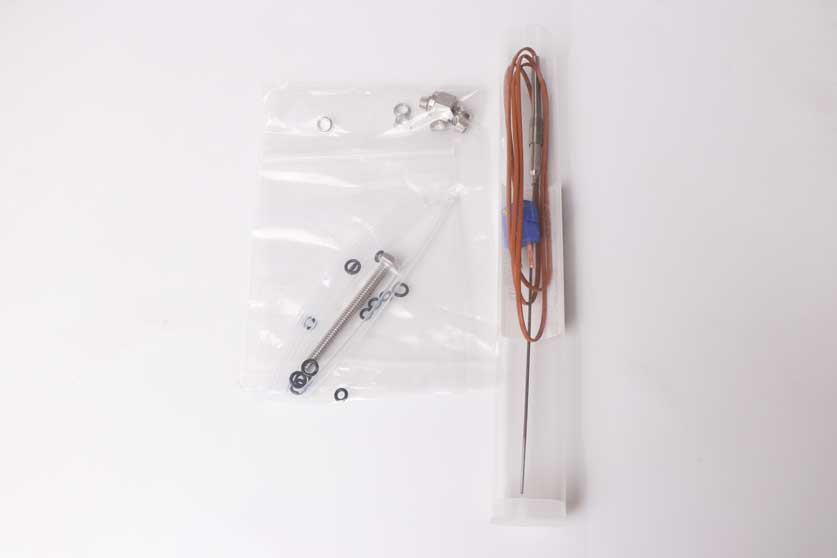

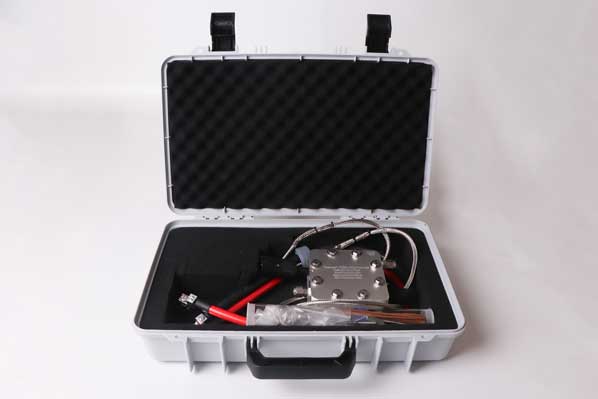

Protection box	cable	thermocouple

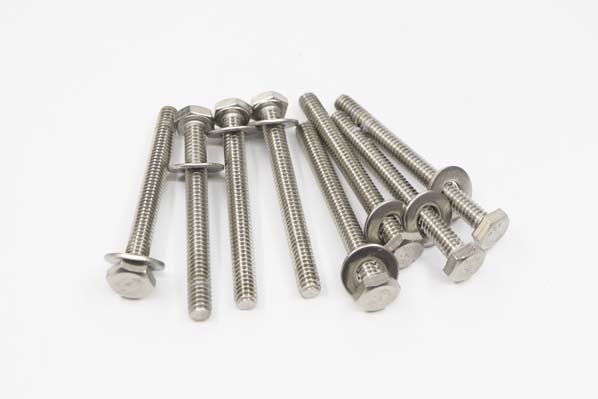

Bolt+gasket	Complete set

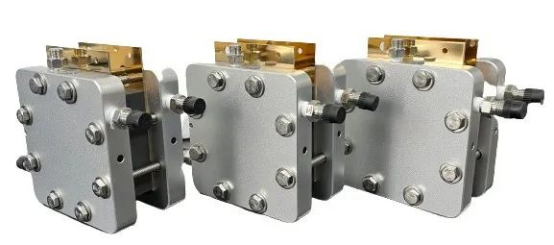

5 cm² single-channel serpentine flow field	25 cm² triple-channel serpentine flow field	50 cm² four-channel parallel serpentine flow field

3. Test Data

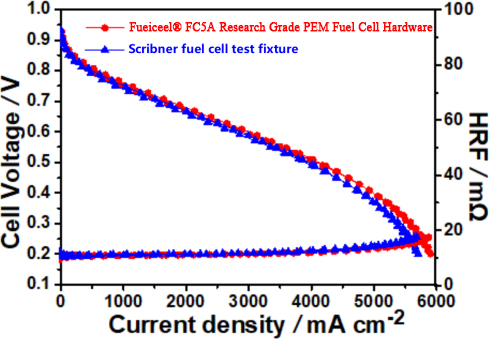

The red curve in the figure below represents the polarization curve data of a hydrogen-oxygen fuel cell obtained using this product, which is highly consistent with the data obtained using a Scribner cell fixture. Fuel cell testing conditions: 5 cm2 electrode area, 500 sccm hydrogen - 500 sccm oxygen, 1 standard atmosphere pressure, both the anode and the cathode are 0.1 mg/cm2 Pt/C catalyst, and Nafion NR211 proton exchange membrane.

▲Hydrogen-oxygen fuel cell polarization curve data
