| Accessories |

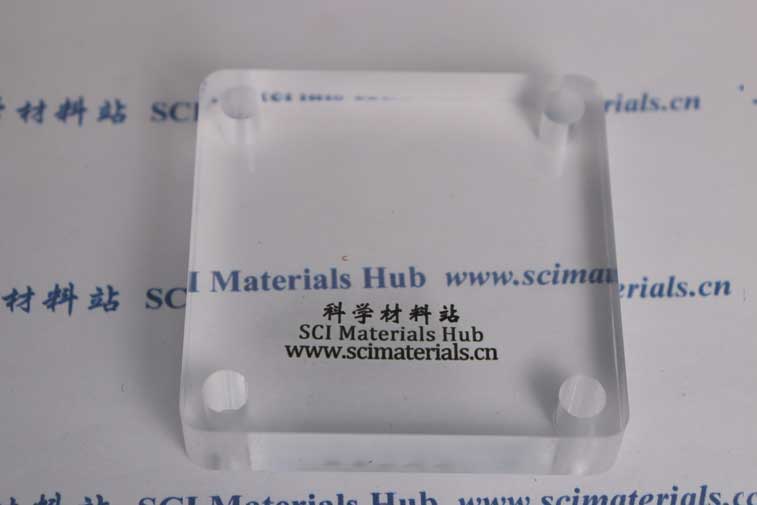

Anode plain Plate |
PMMA |
|
|
Cathode/anode electrolyte chamber |
PMMA |
|
|
Cathode flow field |
PMMA |
|
|
| Gasket | PTFE anode gasket
(Opening size 15x15mm) | PTFE membrane gasket
(Opening size 10x10mm) | PTFE cathode sealing gasket (Opening size 10x10mm) | PTFE cathode GDE gasket (Opening size 13x13mm) |
Gasket thickness options: 100/200/250/300/400/500/600/1000μm |

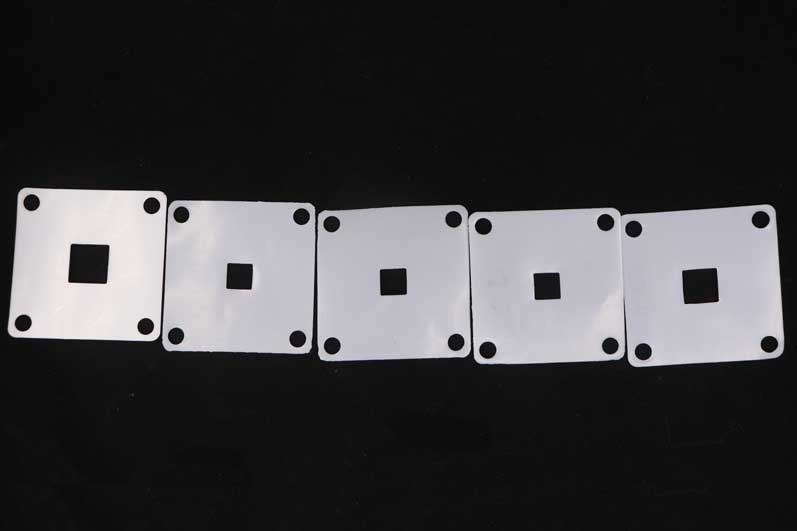

Gasket set |
PTFE gasket sets Thickness from anode to cathode (default): 500/200/200/200/200μm |
FKM gasket sets Thickness from anode to cathode (default): 500/200/200/200/200μm |
| Tube |

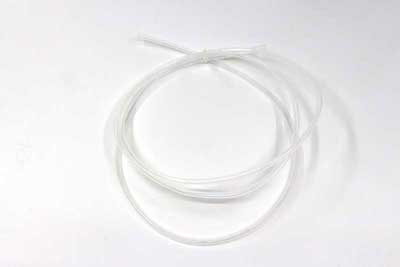

PTFE tube (ID2mm/OD3mm) |

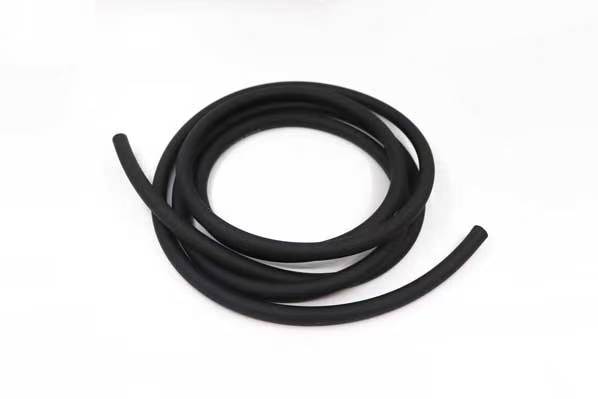

Corrosion resistant soft tube for peristaltic pump (ID3.2mm/OD6.4mm) |
| Connectors |

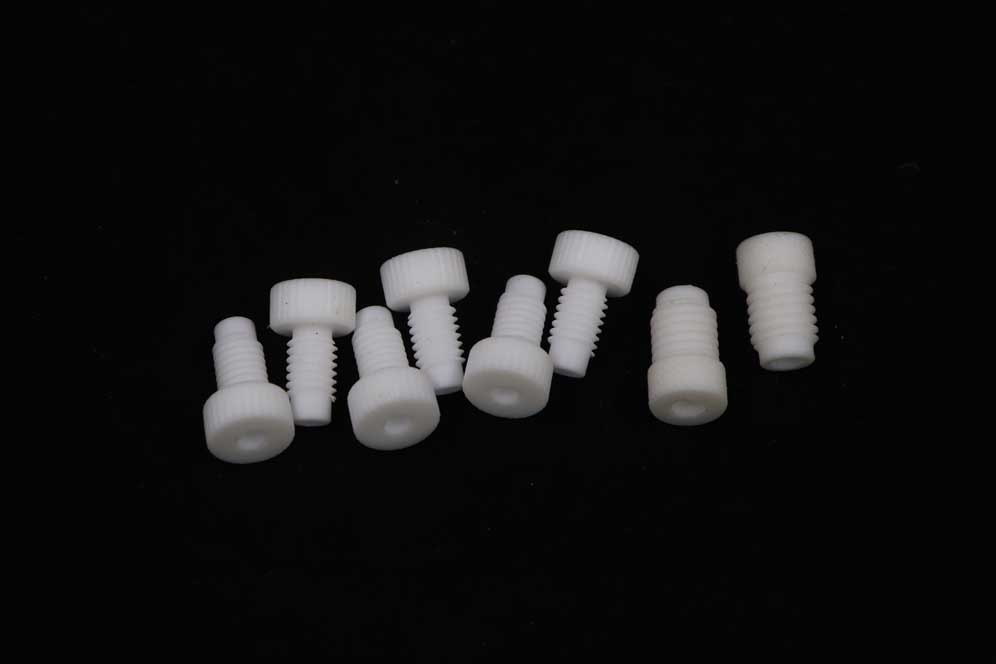

PTFE connectors |

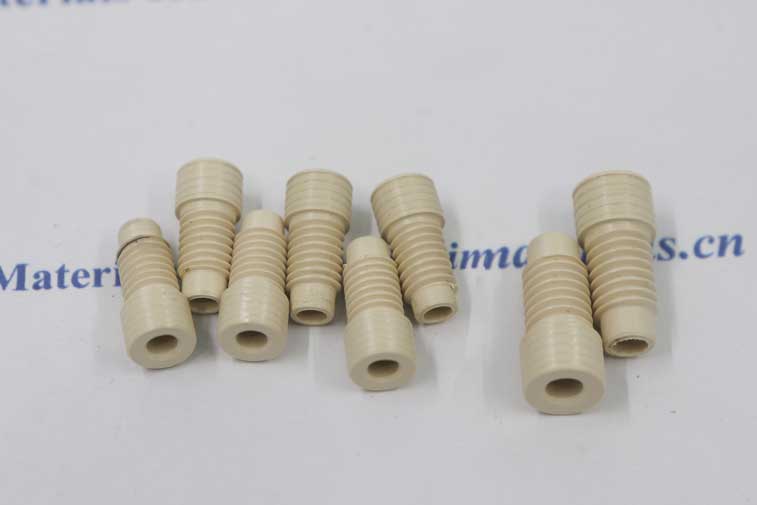

PEEK connectors |
PTFE & Nickel quick connectors |
| Others |
SS fastening kits |
Wrench kit |

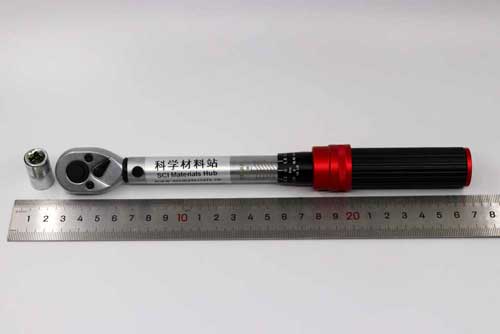

Torque wrench with sleeve (2-10 Nm) |
25A DC electrical lead pair - Alligator Clip 0.5m; 1m 1.5m; 2m |
25A DC electrical lead pair - Banana plug to Alligator Clip 0.5m; 1m 1.5m; 2m |

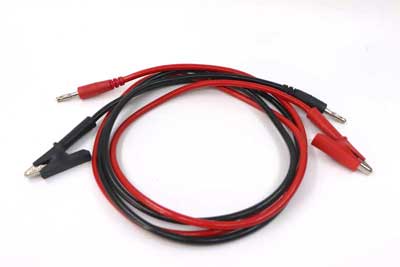

35A DC electrical lead pair - Banana plug to Alligator Clip 0.5m; 1m 1.5m; 2m |
40A DC electrical lead pair - Ring to Ring 0.5m; 1m 1.5m; 2m |
VHP01 vacuum heater |
O rings | Small peristaltic pump (1 channel) Standard peristaltic pump (1 channel) Standard peristaltic pump (2 channels) Gear pump (1 channel) | DC power supply with data recording, storage, and export functions |

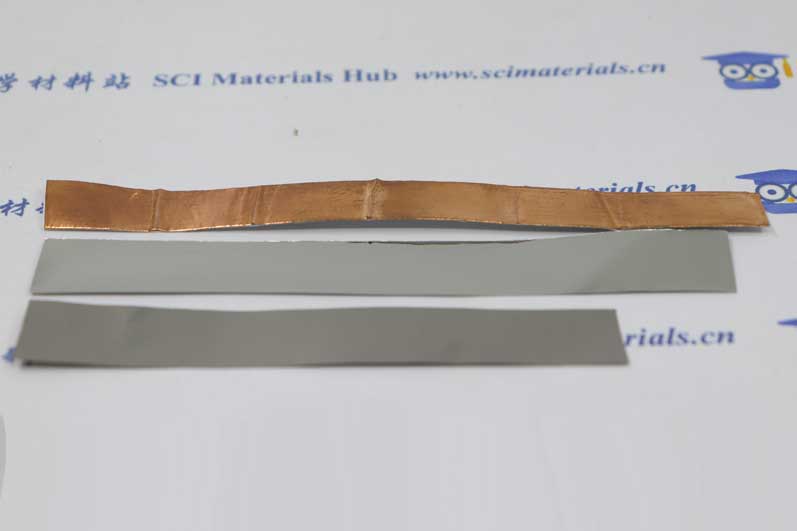

Current collectors (Cu/Ti/SS) |

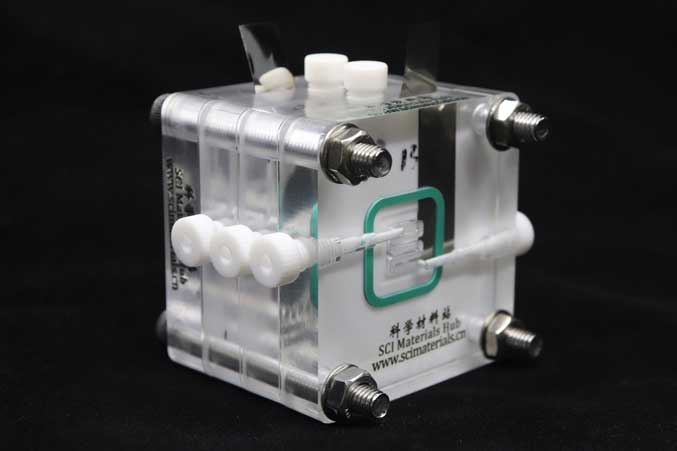

Assembled PMMA cell |
Gasket dial |
|

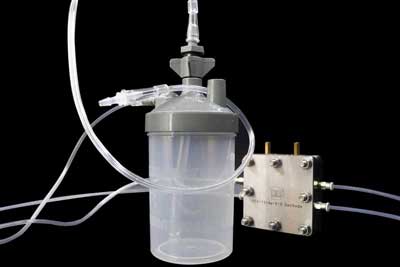

Humidifier Kit |
Humidifier with 6 PSI safety valve | * Mass flow controller with reader (CO2, 500sccm)
** Mass flow controller with Modbus RS485 Communication (CO2, 500sccm) |
PP isodiametric barbed hose connector Hose IDΦ1-Φ1.6mm Hose IDΦ1.6-Φ2.4mm Hose IDΦ2.4-Φ3.2mm Hose IDΦ3.2-Φ4mm |
PP barbed connector for variable diameter hoses Hose IDΦ1.6↔Φ2.4 Hose IDΦ1.6↔Φ3.2 Hose IDΦ2.4↔Φ3.2 Hose IDΦ2.4↔Φ4 Hose IDΦ3.2↔Φ4 |

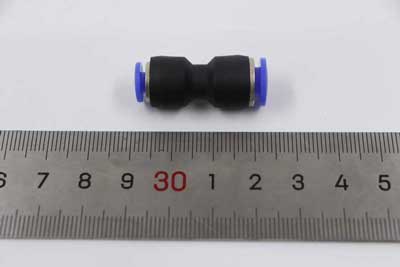

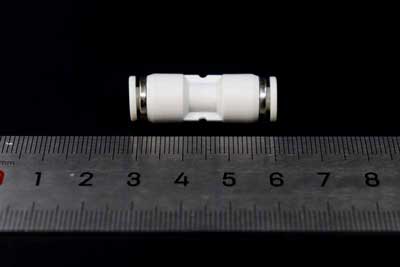

PE isodiametric quick connector Tube ODΦ3-Φ3mm Tube ODΦ3.2-Φ3.2mm Tube ODΦ4-Φ4mm Tube ODΦ6-Φ6mm |

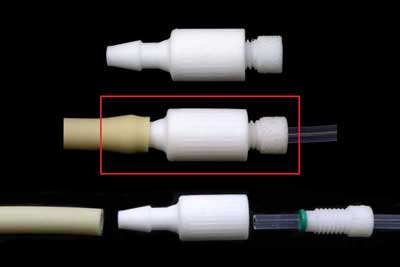

PE quick connector for variable diameter tubes Tube ODΦ3-Φ3.2mm Tube ODΦ3-Φ4mm Tube ODΦ3-Φ5mm Tube ODΦ3-Φ6mm Tube ODΦ3.2-Φ4mm Tube ODΦ3.2-Φ6mm |  PTFE corrosion-resistant hose/tube adapter Tube ODΦ3mm↔hose IDΦ(1.6-2.5)mm Tube ODΦ(3-3.2)mm↔hose IDΦ(3-5)mm Tube ODΦ(4-4.2)mm↔hose IDΦ(6-8)mm Tube ODΦ(6-6.2)mm↔hose IDΦ(6-8)mm Tube ODΦ(8-8.2)mm↔hose IDΦ(6-8)mm |
PTFE corrosion-resistant isodiametric tube connector
Φ3mm↔Φ3mm Φ3.2mm↔Φ3.2mm Φ4mm↔Φ4mm Φ6mm↔Φ6mm Φ8mm↔Φ8mm |
PTFE connector for variable diameter tubes
Φ3mm↔Φ3.2mm Φ3mm↔Φ4mm Φ3mm↔Φ6mm Φ3.2mm↔Φ4mm Φ4mm↔Φ6mm |

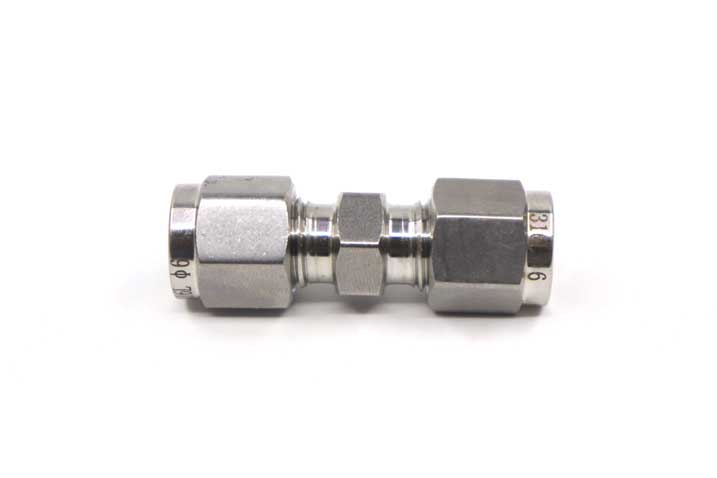

316L SS isodiametric tube connector
Φ3mm↔Φ3mm Φ3.2mm↔Φ3.2mm Φ4mm↔Φ4mm Φ6mm↔Φ6mm Φ8mm↔Φ8mm |  316L SS connector for variable diameter tubes
Φ3mm↔Φ3.2mm Φ3mm↔Φ4mm Φ3mm↔Φ6mm Φ4mm↔Φ6mm |
