Fueiceel® Research Grade 100cm<sup>2</sup> AEM Electroyzer - Serpentine Flow Field-Welcome to Fueiceel® Technology

Fueiceel® Research Grade 100cm² AEM Electroyzer - Serpentine Flow Field Model Number：AEMMEA100a English Name：Fueiceel® Research Grade 100cm² AEM Electroyzer - Serpentine Flow Field

Online Inquiry

Previous Next

Product Information Technical Specification Accessory Details Purchase Setails Reference

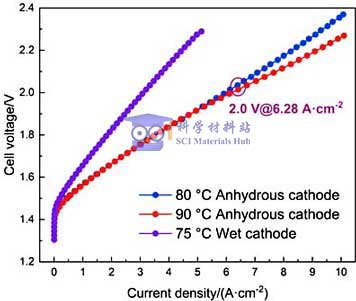

Fueiceel® Research Grade (AEMMEA100a) 100cm² AEM Electroyzer - Serpentine Flow Field is a electrolyzer hardware designed for experimental research involving anion exchange membranes (AEM). This research grade 1 cm² electrolyzer features a square serpentine flow field design and uses advanced electrode materials such as Raney nickel mesh or FeCoNi/nickel fiber paper for the cathode, and NiFeOx/stainless steel fiber paper for the anode. The electrolyzer can achieve a current density of 1-3 A/cm². Using Youveim® E340PT 1 mg/cm² Ir - Platinized Ti Fiber Paper for the anode and DiffuCarb® E243C 0.5 mg/cm² 50% PtRu (1:1.5)/HSC - carbon paper for the cathode, a current density of 6.3 A/cm² at 2V and 80°C was achieved.

SCI Materials Hub is enabling the advancement of new and improved electrochemical processes which can operate at commercially viable operating voltages, current efficiencies, and current densities.

These electrolyzer hardware (MEA not included) are assembled by our engineers & a leakage-sealing test before leaving our lab. Complete electrolyzer with MEA and test report are also available upon request.

Accessories

Cathode

flow

field

FF10036140a-NI200 Nickel Flow Field

微信图片_20240418151718.jpg 微信图片_20240418151723.jpg

FF10036140a-TI2 Titanium Flow Field

Anode

flow

field

FF10036145a-NI200 Nickel Flow Field

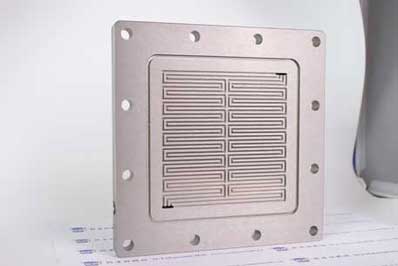

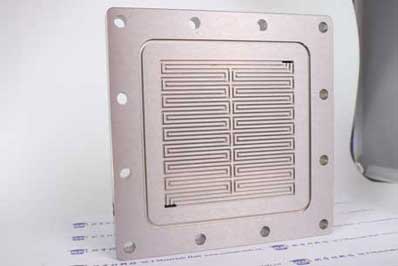

微信图片_20240418151728.jpg 微信图片_20240418151733.jpg

FF10036145a-TI2 Titanium Flow Field

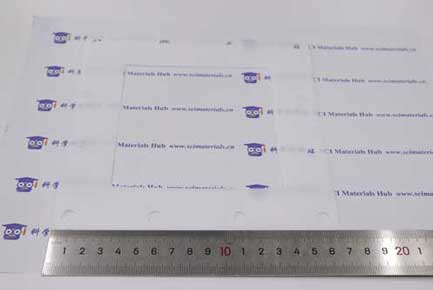

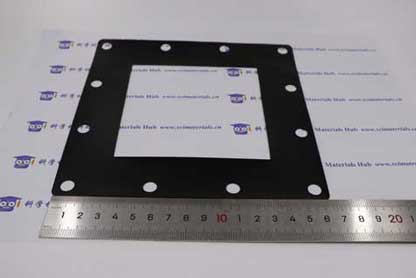

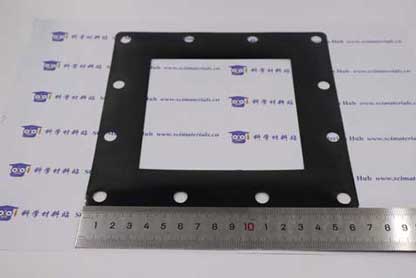

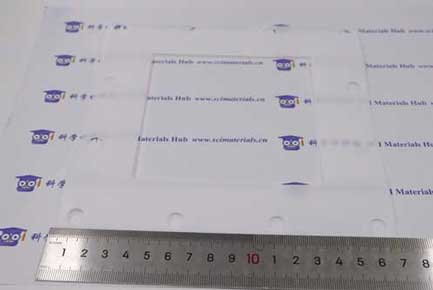

Gasket


PTFE Anode Gasket (100, 200, 250, 300, 400, 500, 1000 μm)


PTFE Cathode Gasket (100, 200, 250, 300, 400, 500, 1000 μm)


Viton Anode Gasket (100, 200, 250, 300, 400, 500, 1000 μm)


Viton Cathode Gasket (100, 200, 250, 300, 400, 500, 1000 μm)

Tube


PE tube (ID6mm, OD8mm)

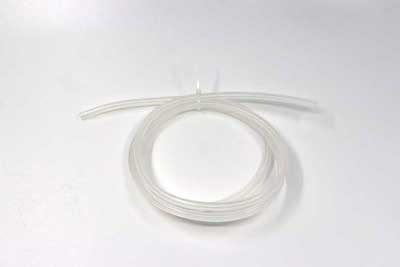

Silicone tube (ID6.4mm, OD9.6mm) for peristaltic pump

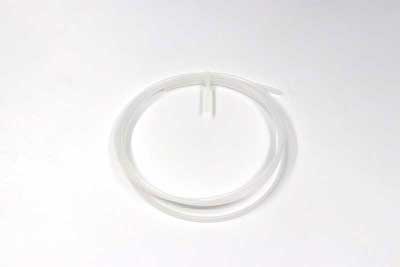

Corrosion resistant Teflon tube (ID6mm, OD8mm)


Corrosion resistant tube (ID6.4mm, OD9.6mm) for peristaltic pump

Connectors

ABS bolts (ID6mm)

PTFE bolts (ID6mm)

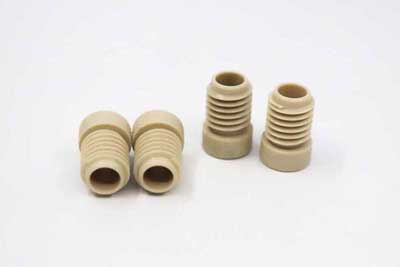

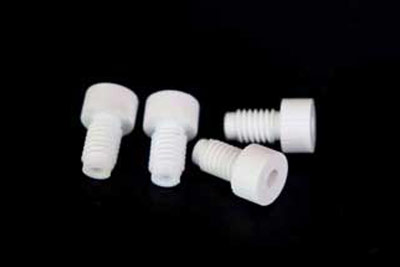

PEEK tube nuts (ID6mm)

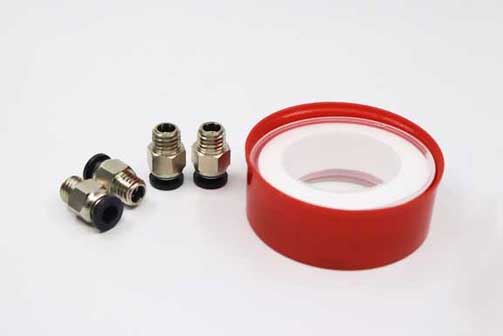

Nickel quick connectors (ID6mm)

Others

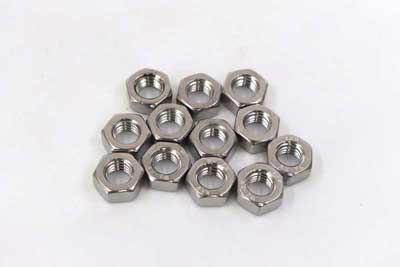

SS nuts

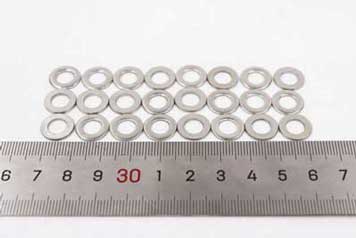

SS spacers


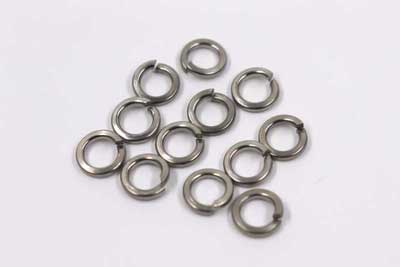

SS springs

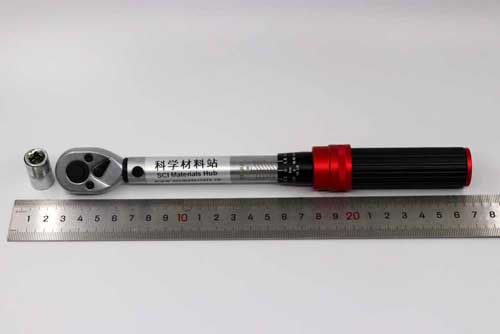

Torque wrench with sleeve (1-25 Nm)

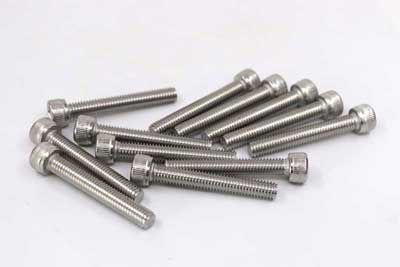

SS bolts


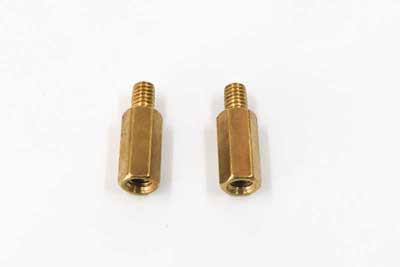

Spacers

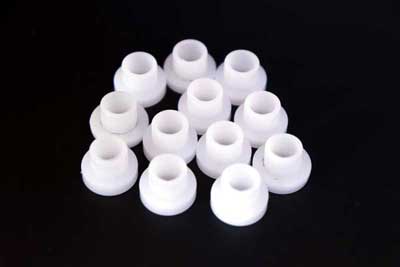

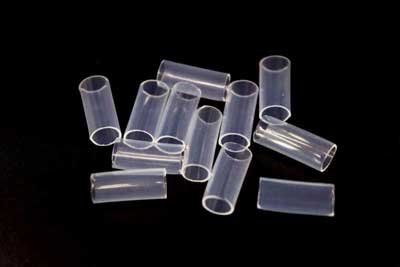

Insulators (T0.5mm)


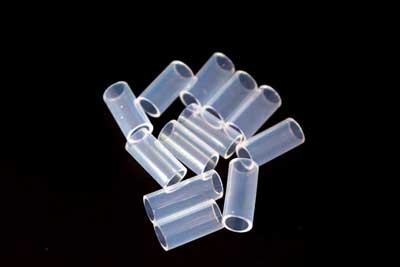

Insulators (T1mm)

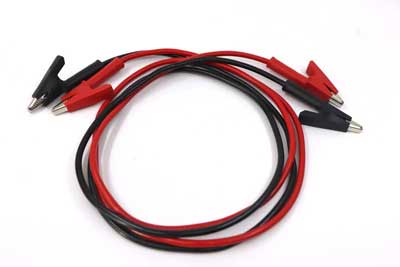

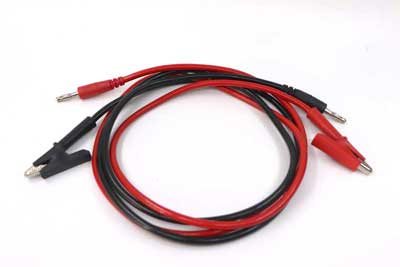

25A High current DC electrical lead pair - Alligator Clip

0.5m; 1m

1.5m; 2m

25A High current DC electrical lead pair -Banana plug to Alligator Clip

0.5m; 1m

1.5m; 2m

35A High current DC electrical lead pair -Banana plug to Alligator Clip

0.5m; 1m

1.5m; 2m

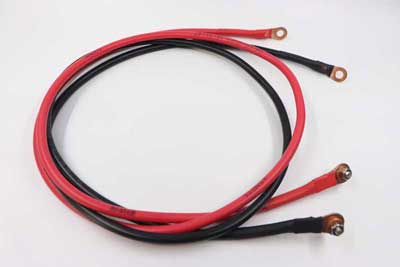

40A High current DC electrical lead pair - Ring to Ring

0.5m; 1m

1.5m; 2m

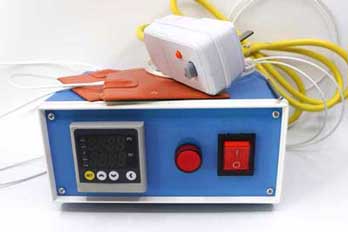

Temperature controller (Accuracy: 0.1°C)

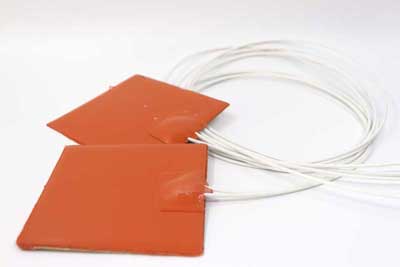

Heating pads

Heating pad binder

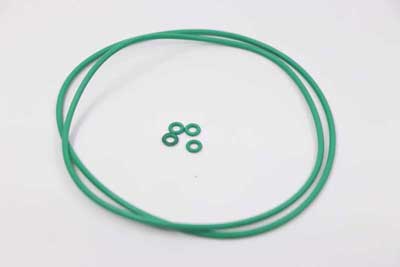

O rings

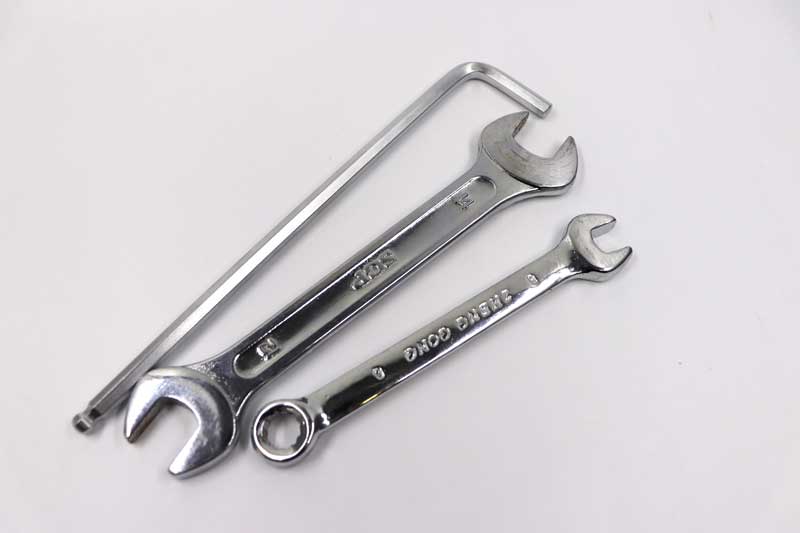

Wrench kit

VHP01 vacuum heater

A simple system for electrolyte circulation and gas-liquid separation

Small peristaltic pump

Standard peristaltic pump

Standard peristaltic pump with two channels

Gear pump

DC power supply with data recording, storage, and export functions


Cu conductors

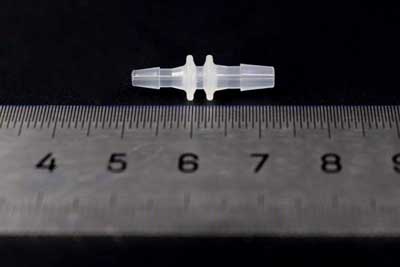

PP isodiametric barbed

hose connector

Hose IDΦ1-Φ1.6mm

Hose IDΦ1.6-Φ2.4mm

Hose IDΦ2.4-Φ3.2mm

Hose IDΦ3.2-Φ4mm

Hose IDΦ4-Φ4.8mm

PP barbed connector for

variable diameter hoses

Hose IDΦ1.6mm↔Φ2.4mm

Hose IDΦ1.6mm↔Φ3.2mm

Hose IDΦ2.4mm↔Φ3.2mm

Hose IDΦ2.4mm↔Φ4mm

Hose IDΦ3.2mm↔Φ4mm

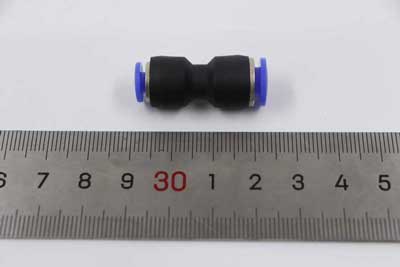

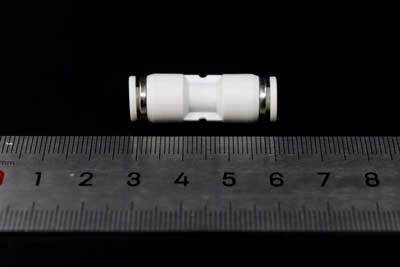

PE isodiametric quick connector

Tube ODΦ3-Φ3mm

Tube ODΦ3.2-Φ3.2mm

Tube ODΦ4-Φ4mm

PE quick connector for

variable diameter tubes

Tube ODΦ3-Φ3.2mm

Tube ODΦ3-Φ4mm

Tube ODΦ3-Φ5mm

Tube ODΦ3-Φ6mm

Tube ODΦ3.2-Φ4mm

Tube ODΦ3.2-Φ6mm

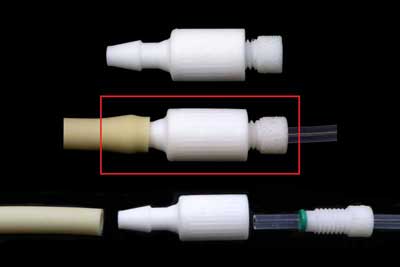

PTFE corrosion-resistant

hose/tube adapter

Tube ODΦ3.2mm↔hose IDΦ1.6mm

Tube ODΦ3.2mm↔hose IDΦ2.4mm

Tube ODΦ3.2mm↔hose IDΦ3.2mm

Tube ODΦ3.2mm↔hose IDΦ4mm

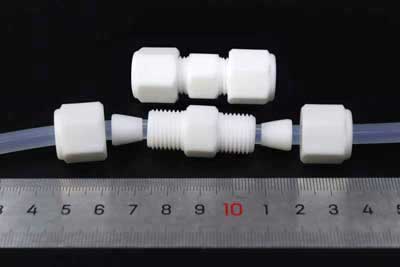

PTFE corrosion-resistant

isodiametric tube connector

Φ3mm↔Φ3mm

Φ3.2mm↔Φ3.2mm

Φ4mm↔Φ4mm

Φ6mm↔Φ6mm

Φ8mm↔Φ8mm

PTFE corrosion-resistant connector

for variable diameter tubes

Φ3mm↔Φ3.2mm

Φ3mm↔Φ4mm

Φ3mm↔Φ6mm

Φ3.2mm↔Φ4mm

Φ4mm↔Φ6mm

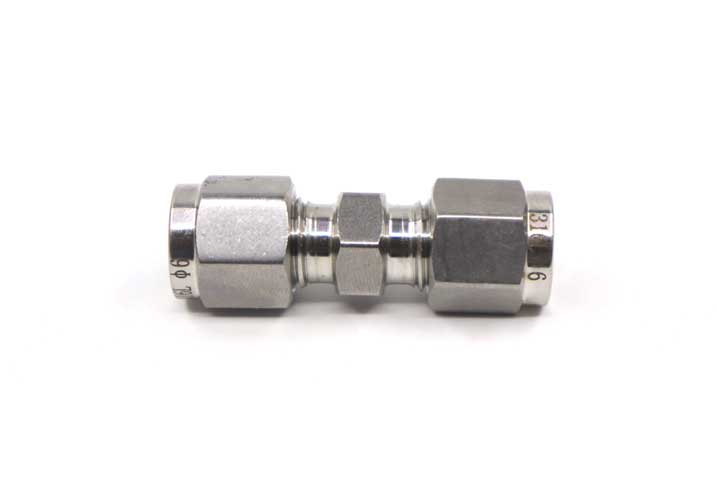

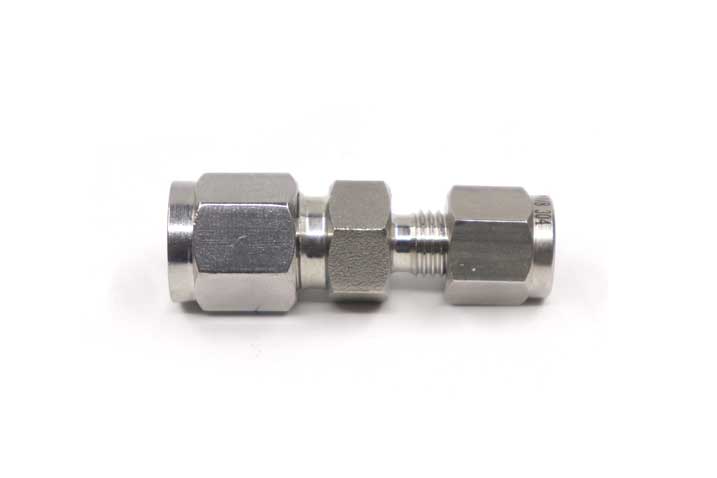

316L SS isodiametric tube connector
