Fueiceel® Research Grade 1cm² AEM Electroyzer - Serpentine Flow Field Price：AEMMEA1a Model Number：AEMMEA1a English Name：Fueiceel® Research Grade 1cm² AEM Electroyzer - Serpentine Flow Field

Online Inquiry

Previous Next

Product Information Technical Specification Accessory Details Purchase Setails Reference

Fueiceel® Research Grade (AEMMEA1a) 1cm² AEM Electroyzer - Serpentine Flow Field is a electrolyzer hardware designed for experimental research involving anion exchange membranes (AEM). This research grade 1 cm² electrolyzer features a square serpentine flow field design and uses advanced electrode materials such as Raney nickel mesh or FeCoNi/nickel fiber paper for the cathode, and NiFeOx/stainless steel fiber paper for the anode. The electrolyzer can achieve a current density of 1-3 A/cm². Using Youveim® E340PT 1 mg/cm² Ir - Platinized Ti Fiber Paper for the anode and DiffuCarb® E243C 0.5 mg/cm² 50% PtRu (1:1.5)/HSC - carbon paper for the cathode, a current density of 6.3 A/cm² at 2V and 80°C was achieved.

SCI Materials Hub is enabling the advancement of new and improved electrochemical processes which can operate at commercially viable operating voltages, current efficiencies, and current densities.

These electrolyzer hardware (no MEA included) are assembled by our engineers & a leakage-sealing test before leaving our lab. Complete electrolyzer with MEA and test report are also available upon request.

Accessories

Cathode

flow

field


FF1176a-NI200 Nickel


FF1170a-NI200 Nickel


FF1176a-TI2 Titanium


FF1170a-TI2 Titanium

Anode

flow

field


FF1179a-NI200 Nickel


FF1170a-NI200 Nickel


FF1179a-TI2 Titanium


FF1170a-TI2 Titaniumn

Gasket


PTFE anode gasket (100/200/250/300/400/500/1000μm)


PTFE cathode gasket (100/200/250/300/400/500/1000μm)


FKM anode gasket (100/200/250/300/400/500/1000μm)


FKM cathode gasket (100/200/250/300/400/500/1000μm)

Tube


PE tube (ID1/16" OD1/8")


Silicone tube (ID1.6mm/OD4.8mm)


Teflon tube (ID1/16" OD1/8")


tube (ID1.6mm/OD4.8mm)

Connectors

ABS bolts (ID1/8")

PTFE bolts (ID1/8")

Nickel bolts (ID1/8")

Others

SS nuts

SS spacers

SS springs


Torque wrench with sleeve (1-25 Nm)

SS bolts

Shoulder washers

Insulators (T0.5mm)

Insulators (T1mm)

25A High current DC electrical lead pair - Alligator Clip

0.5m; 1m

1.5m; 2m

25A High current DC electrical lead pair - Banana plug to Alligator Clip

0.5m; 1m

1.5m; 2m

35A High current DC electrical lead pair - Banana plug to Alligator Clip

0.5m; 1m

1.5m; 2m

40A High current DC electrical lead pair - Ring to Ring

0.5m; 1m

1.5m; 2m


Temperature controller(Accuracy: 0.1°C)


Heating pads

Heating pad binder25ml


O rings

Wrench kit

VHP01 vacuum heater

A simple system for electrolyte circulation and gas-liquid separation

Small peristaltic pump

Standard peristaltic pump

Standard peristaltic pump with two channels

Gear pump

DC power supply with data recording, storage, and export functions

Cu conductors

PP isodiametric barbed

hose connector

Hose IDΦ1-Φ1.6mm

Hose IDΦ1.6-Φ2.4mm

Hose IDΦ2.4-Φ3.2mm

Hose IDΦ3.2-Φ4mm

PP barbed connector for

variable diameter hoses

Hose IDΦ1.6↔Φ2.4

Hose IDΦ1.6↔Φ3.2

Hose IDΦ2.4↔Φ3.2

Hose IDΦ2.4↔Φ4

Hose IDΦ3.2↔Φ4

PE isodiametric quick connector

Tube ODΦ3-Φ3mm

Tube ODΦ3.2-Φ3.2mm

Tube ODΦ4-Φ4mm

Tube ODΦ6-Φ6mm

PE quick connector for

variable diameter tubes

Tube ODΦ3-Φ3.2mm

Tube ODΦ3-Φ4mm

Tube ODΦ3-Φ5mm

Tube ODΦ3-Φ6mm

Tube ODΦ3.2-Φ4mm

Tube ODΦ3.2-Φ6mm

PTFE corrosion-resistant

hose/tube adapter

Tube ODΦ3.2mm↔hose IDΦ1.6mm

Tube ODΦ3.2mm↔hose IDΦ2.4mm

Tube ODΦ3.2mm↔hose IDΦ3.2mm

Tube ODΦ3.2mm↔hose IDΦ4mm

PTFE corrosion-resistant

isodiametric tube connector

Φ3mm↔Φ3mm

Φ3.2mm↔Φ3.2mm

Φ4mm↔Φ4mm

Φ6mm↔Φ6mm

Φ8mm↔Φ8mm

PTFE corrosion-resistant connector

for variable diameter tubes

Φ3mm↔Φ3.2mm

Φ3mm↔Φ4mm

Φ3mm↔Φ6mm

Φ3.2mm↔Φ4mm

Φ4mm↔Φ6mm

316L SS isodiametric tube connector

Φ3mm↔Φ3mm

Φ3.2mm↔Φ3.2mm

Φ4mm↔Φ4mm

Φ6mm↔Φ6mm

Φ8mm↔Φ8mm

316L SS connector

for variable diameter tubes

Φ3mm↔Φ3.2mm

Φ3mm↔Φ4mm

Φ3mm↔Φ6mm

Φ4mm↔Φ6mm

Electrolyte - Gas Separator

PMMA body

PTFE body

PEEK body

Consumables

AEM

NexIonic® A50

NexIonic® A80

NexIonic® A100

Ionomer

GDL

Youveim® Ni fiber paper

Youveim® SS fiber paper

DiffuCarb® CP-A210R raw carbon paper

DiffuCarb® CP-A330R raw carbon paper

DiffuCarb® CP-A400R raw carbon paper

DiffuCarb® CP-H450R raw carbon paper

DiffuCarb® CP-H850R raw carbon paper

Youveim® Ti fiber paper

Youveim® Ti screen

Youveim® Platinized Ti fiber paper

Youveim® Platinized Ti screen

Anode

GDE

NiFeOx

Youveim® E100H NiFeOx-SS fiber paper with hydrophilic interface

Youveim® E100T NiFeOx-SS fiber paper with hydrophobic interface

Youveim® E100G NiFeOx-Gold Plated SS fiber paper with hydrophobic interface

Youveim® E102 NiFeOx-Ti Fiber Paper

Youveim® E102PT NiFeOx-Platinized Ti Fiber Paper

Youveim® E103 NiFeOx-Ni Fiber Paper

Youveim® E103G NiFeOx-Gold Plated Ni Fiber Paper

Youveim® E103PT NiFeOx-Platinized Ni Fiber Paper

Youveim® E104 NiFeOx-Ni Foam

Youveim® E104G NiFeOx-Gold Plated Ni Foam

Youveim® E104PT NiFeOx-Platinized Ni Foam

CoFeOx

Youveim® E110H CoFeOx-SS fiber paper with hydrophilic interface

Youveim® E110T CoFeOx-SS fiber paper with hydrophobic interface

Youveim® E110G CoFeOx-Gold Plated SS fiber paper with hydrophobic interface

Youveim® E112 CoFeOx-Ti Fiber Paper

Youveim® E112PT CoFeOx-Platinized Ti Fiber Paper

Youveim® E113 CoFeOx-Ni Fiber Paper

Youveim® E113G CoFeOx-Gold Plated Ni Fiber Paper

Youveim® E113PT CoFeOx-Platinized Ni Fiber Paper

Youveim® E114 CoFeOx-Ni Foam

Youveim® E114G CoFeOx-Gold Plated Ni Foam

Youveim® E114PT CoFeOx-Platinized Ni Foam

IrO₂

DiffuCarb® E300 IrO₂-carbon paper

DiffuCarb® E300T IrO₂-carbon paper with hydrophobic interface

DiffuCarb® E300H IrO₂-carbon paper with hydrophilic interface

Youveim® E301T IrO2-SS fiber paper with hydrophobic interface

Youveim® E301H IrO₂-SS fiber paper with hydrophilic interface

Youveim® E301PT IrO₂-Platinized SS fiber paper

Youveim® E301G IrO₂-Gold Plated SS fiber paper

Youveim® E303T IrO2-Ti fiber paper with hydrophobic interface

Youveim® E303H IrO₂-Ti fiber paper with hydrophilic interface

Youveim® E303PT IrO₂-Platinized Ti fiber paper

Youveim® E303G IrO₂-Gold Plated Ti fiber paper

Youveim® E305T IrO2-Nickel fiber paper with hydrophobic interface

Youveim® E305H IrO₂-Nickel fiber paper with hydrophilic interface

Youveim® E305PT IrO₂-Platinized Nickel fiber paper

Youveim® E305G IrO₂-Gold Plated Nickel fiber paper

Youveim® E309 IrO₂/Ti fiber paper

Youveim® E310 IrO₂/Platinized Ti fiber paper

Youveim® E311 Pt-IrO₂/Platinized Ti fiber paper

Youveim® E314 IrO₂/Ti screen

Youveim® E315 IrO₂/Platinized Ti screen

Youveim® E316 Pt-IrO₂/Platinized Ti screen

Youveim® E320 IrO2/Ti foam

Youveim® E321 IrO₂/Platinized Ti foam

Youveim® E322 Pt-IrO₂/Platinized Ti foam

DiffuCarb® E330 Ir-carbon paper

DiffuCarb® E330T Ir-carbon paper with hydrophobic interface

DiffuCarb® E330H Ir-carbon paper with hydrophilic interface

Youveim® E340T Ir-Ti fiber paper with hydrophobic interface

Youveim® E340H Ir-Ti fiber paper with hydrophilic interface

Youveim® E341T Ir-Platinized Ti fiber paper with hydrophobic interface

Youveim® E341H Ir-Platinized Ti fiber paper with hydrophilic interface

Youveim® E343 Ir/Ti screen

Youveim® E344 Ir/Platinized Ti screen

Youveim® E345 Pt-Ir/Platinized Ti screen

Youveim® E347 Ir/Ti fiber paper

Youveim® E348 Ir/Platinized Ti fiber paper

Youveim® E349 Pt-Ir/Platinized Ti fiber paper

Youveim® E351 Ir/Ti foam

Youveim® E352 Ir/Platinized Ti foam

Youveim®E353 Pt-Ir/Platinized Ti foam

Cathode

GDE

Youveim® E120 FeCoNi-Ni fiber paper

DiffuCarb® E121 FeCoNi-carbon paper

Youveim® E130 Raney Ni-Ni screen

DiffuCarb® E200 Pt/C-carbon paper

Youveim® E210 Pt/C-Ti fiber paper

Youveim® E211 Pt/C-Platinized Ti fiber paper

Youveim® E214 Pt/C-Ti foam

Youveim® E215 Pt/C-Platinized Ti foam

DiffuCarb® E220 Pt black-carbon pape

Youveim® E230 Pt black-Ti fiber paper

Youveim® E233 Pt black-Platinized Ti fiber paper

Youveim® E235 Pt black-Ti foam

Youveim® E237 Pt black-Platinized Ti foam

The accessories include:

Electrolyzer type	Components	Details
AEMMEA1a-1 Best seller	FF1176a-NI200 Nickel cathode flow field (x1), FF1179a-NI200 Nickel anode flow field (x1)、PTFE gasket set (x1) Stainless steel bolts+nuts+gaskets (x1 set), O-ring set (x1) Insulating sleeves+shoulder washers (x1 set), Nickel quick connectors (x1 set)
AEMMEA1a-1G Enhanced Performance	FF1176a-NI200G Gold-Plated Nickel cathode flow field (x1), FF1179a-NI200G Gold-Plated Nickel anode flow field (x1) PTFE gasket set (x1), Stainless steel bolts+nuts+gaskets (x1 set), O-ring set (x1) Insulating sleeves+shoulder washers (x1 set), Nickel quick connectors (x1 set)
AEMMEA1a-2	FF1176a-TI2 Titanium cathode flow field (x1), FF1179a-TI2 Titanium anode flow field (x1), PTFE gasket set (x1) Stainless steel bolts+nuts+gaskets (x1 set), O-ring set (x1) Insulating sleeves+shoulder washers (x1 set), Nickel quick connectors (x1 set)
AEMMEA1a-3	FF1170a-FF1170a-TI2 Titanium cathode flow field (x1), FF1170a-TI2 Titanium anode flow field (x1), PTFE gasket set (x1) Stainless steel bolts+nuts+gaskets (x1 set), O-ring set (x1) Insulating sleeves+shoulder washers (x1 set), Nickel quick connectors (x1 set)
AEMMEA1a-4	FF1170a-NI200 Nickel cathode flow field (x1), FF1170a-NI200 Nickel anode flow field (x1), PTFE gasket set (x1) Stainless steel bolts+nuts+gaskets (x1 set), O-ring set (x1) Insulating sleeves+shoulder washers (x1 set), Nickel quick connectors (x1 set)

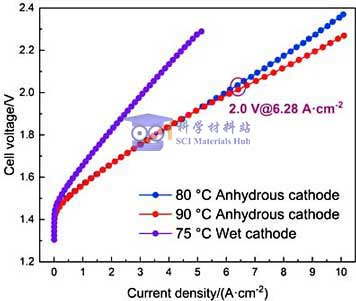

AEM Test Electrolyzer: AEMMEA4a Anode: Youveim® E340PT 1 mg/cm² Ir - Platinized Ti Fiber Paper Cathode: DiffuCarb® E243C 0.5 mg/cm² 50% PtRu (1:1.5)/HSC - carbon paper

For international orders, please ask us for quotes via

Email: contact@fueiceel.com

Tel: +86 130-0303-8751 / +86 156-0553-2352
